DGD09 [EN]

DIRECT DRIVE GEAR

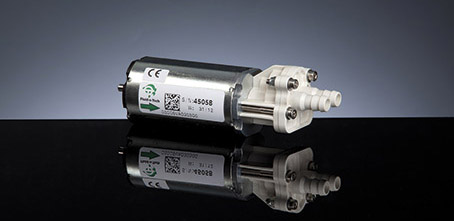

[stextbox id=”black”]DGD09 – Direct drive gear pump motor units
In Vectra, food grade material, direct drive version
Flow rate: 8 to 42 GPH/30 to 60 l/h at 3900 rpm
Pressure: up to 58 psi/up to 4 bar[/stextbox]

[stextbox id=”grey”]01-MG200-400

The DGD09 series direct drive gear pumps derive from the well established mag drive MG200 series.
Built to handle clean water and relatively viscous fluids at low pressure, the DGD09 series pump-motor unit has low pulsation and is capable of handling fluids at a maximum temperature of 70 ¡C (158 F). The extreme compactness of its design makes it the preferred choice where space is limited. Suction/discharge ports are 8 mm barbed end.

[/stextbox][stextbox id=”download”]Motor version (brush type):
 1550 rpm, 24 V DC / 3200 rpm, 24 V DC / 3900 rpm, 24 V DC
MAIN APPLICATIONS:
 Water purification, Laser cooling, Spraying, Water recirculation, Condensation removal, Syrup Dispensing, Vending machines, Food processing, Digital macro printing [/stextbox]
