ROTARY VANE PUMPS

[stextbox id=”black”]TH 500-1000 – Magnet drive rotary vane pumps

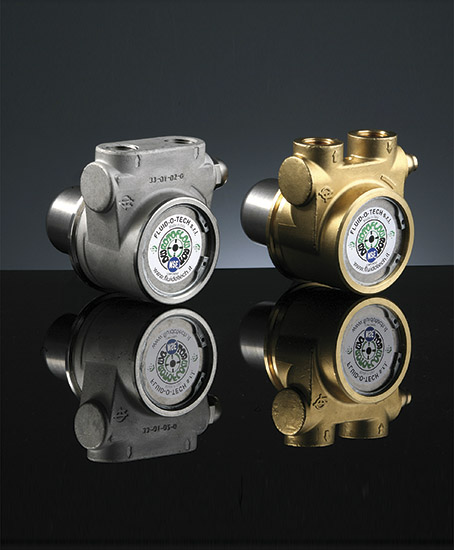

In brass or stainless steel with internal parts in stainless steel and graphite
Flow rate: 158 to 316 GPH at 1725 rpm/500 to 1000 l/h at 1450 rpm
Pressure: up to 200 psi/up to 14 bar[/stextbox]

[stextbox id=”grey”]

The Fluid-o-Tech® magnetic drive rotary vane pumps range widens with the introduction of the TH series which combines the larger flow rate (500 to 1000 l/h at 1450 rpm or 160 to 330 GPH at 1725 rpm) with the added benefit of the magnetic coupling:
• longer service life
• totally sealed body
• low maintenance
• less power consumption
• smooth transmission

The rare earths magnet grants high performance and perfect alignment between the pump and the motor, extending the life of the unit. The absence of friction, usually caused by the rotation of the mechanical seal against the ceramic seat, allows a more efficient operation and therefore a low power consumption. The Rotoflow® TH series pumps offer multiple options to configure the product to the specific need of each customer.
The housing is available in AISI 303 or brass. The internal components include AISI 303 rotor, carbon graphite pumping chamber and NBR seals.
Maximum operative temperature: 70 °C (158 F).

[/stextbox][stextbox id=”warning”]AVAILABLE UPON REQUEST:
Built-in relief valve, Viton®/ EPDM seals
MAIN APPLICATIONS:
Cooling systems, Booster systems, Water treatment, Solar systems[/stextbox]
