ROTARY VANE PUMPS

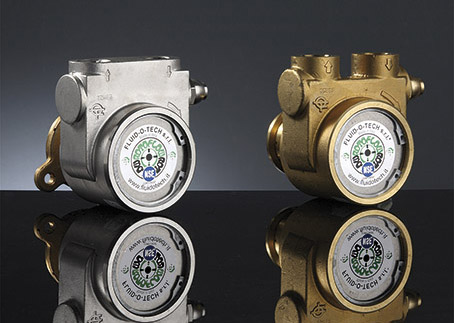

[stextbox id=”black”]PO 500-1000 – Brass and stainless steel rotary vane pumps
In brass or stainless steel with internal parts in stainless steel and graphite
Flow rate: 158 to 316 GPH at 1725 rpm/500 to 1000 l/h at 1450 rpm
Pressure: up to 230 psi/up to 16 bar[/stextbox]

[stextbox id=”grey”]

The high volume rotary vane pumps manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow® are available in six flow ratings to meet the needs of high volume pumping.
The rotary vane pump with brass or stainless steel body utilizes a stainless steel AISI 303 rotor, while the pumping chamber and the vanes are in carbon graphite. Inlet and outlet ports are 1/2” GAS or NPT threaded and the pump could be equipped with a built-in adjustable relief valve. The pump can be connected to coupling direct motor with a metallic clamp or to M71 and M80 UNELMEC frame motors with the Fluid-o-Tech® coupling and adapter set. Maximum operative temperature: 70 °C (158 F)

[/stextbox][stextbox id=”warning”]AVAILABLE UPON REQUEST:
Viton®/EPDM seals, Built-in relief valve, Flange mount, Built-in 100 mesh strainer, California AB 1953 compliant brass
MAIN APPLICATIONS:
Post mix drink dispensers, Cooling systems, Water treatment, Booster systems[/stextbox]
